Treatment & Filtration Media
.jpg)
TS8X30CPR Activated Carbon
TS8X30CPR is a pool-reactivated granular activated carbon used to economically treat non-potable water in excavation dewatering, remediation, and industrial projects.
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 8x30
Min. Iodine #: 800

TS8X30CBRR Activated Carbon
TS8X30CBRR is a reagglomerated, reactivated, coal-based granular activated carbon with meso/macro pore structure, used to economically reduce PFAS in water (compared to virgin grade coal).
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 8x30
Min. Iodine #: 850
.jpg)
TS8X30CBV Activated Carbon
TS8X30CBV is a hard, virgin, bituminous coal-based, reagglomerated liquid phase granular activated carbon featuring a high surface area with meso- and macro-porosity, used to reduce PFAS.
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 8x30 (12x40 by request)
Min. Iodine #: 950

TS8X30CSV Activated Carbon
TS8X30CSV is a hard, virgin, coconut shell-based liquid-phase granular activated carbon with high surface area and microporosity, used to reduce chlorinated VOCs with minimal contact time.
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 8x30 (12x40 by request)
Min. Iodine #: 900

TS12X40NSF Activated Carbon
TS12X40NSF is a hard, virgin, coconut shell-based, liquid-phase GAC that has been acid washed to reduce ash content and provide pH neutral adsorption. NSF 61 certified.
Bulk Density: 33 lbs/ft3
Mesh Sieve: 4x10
Min. Iodine #: 950

TS4X10CPR Activated Carbon
TS4X10CPR is a steam-reactivated, vapor phase granular activated carbon and is an economical choice for reducing VOC's and other toxic organics in air streams.
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 4x10

TS4X10CBV Activated Carbon
TS4X10CBV is a hard, virgin, bituminous coal-based, vapor phase granular activated carbon featuring a high surface area with meso and macroporosity, used to reduce VOCs due to its high loading capacity.
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 4x10 (4x8 by request)

TS4X10CSV Activated Carbon
TS4X10CSV is a hard, virgin, coconut shell-based, vapor phase granular activated carbon featuring a high surface area and microporosity, used to reduce VOCs with minimal contact time.
Bulk Density: 28-33 lbs/ft3
Mesh Sieve: 4x10 (4x8 by request)
.jpg)
TS4MMCBV Activated Carbon
TS4MMCBV is a hard, virgin, coal-based, vapor-phase pellet granular activated carbon used to remove VOCs from air, with reduced pressure drop and handling dust.
Bulk Density: 28-33 lbs/ft3
Pellet x̄ Dia: 4 mm

TS100HS Zeolite
TS100HS is a molecular sieve of clinoptilolite zeolite used to economically remove metals and other cations, such as ammonium, from waste water.
Bulk Density: 49-51 lbs/ft3
Mesh Sieve: 8x14 (14x40 by request)
pH Stable Range: 1-13

TS200HS Organoclay
TS200HS is an impregnated zeolite organoclay used to remove oil, heavy metals, and similar organics from wastewater with advanced absorbative capacity.
Bulk Density: 58-60 lbs/ft3
Mesh Sieve: 8x14 (14x40 by request)
Weight Capacity: 70%

TS250HS Organoclay / GAC Blend
TS250HS is a 50/50 blend of TS200HS and TS8X30CPR used for removing free-phase oil, heavy metals, and similar organics from wastewater.
Bulk Density: 43-45 lbs/ft3
Mesh Sieve: 8x30
Surface Area: 431 ft²/g

TS300HS Modified Zeolite
TS300HS is a chemically modified zeolite used for removing anionic compounds such as phosphates, sulfates, cyanides, and nitrates.
Bulk Density: 58-60 lbs/ft3
Mesh Sieve: 8x14 (14x40 by request)

TSXB17P Potassium Permanganate Blend
TSXB17P is a 50/50 blend of TS600HS and TS4mmCBV used for treating air containing hydrocarbons and acid gases.
Bulk Density: 43-45 lbs/ft3
Moisture Content: 12-15%
pH Stable Range: 4-10

TSPFA694AIX Resin
TSPFA694AIX is an anion exchange resin used for reducing PFAS compounds to non-detect levels of 1-5 ng/L with minimal contact time compared to GAC.
Bulk Density: 40-44 lbs/ft3
Functional group: complex amino
Bead x̄ Dia: 675 +/- 75 um

Sand Filter Media
Sand filter media is a rounded to sub-angular silica sand used to reduce suspended solids and particulate from water in pressure or gravity sand filtration systems, meeting AWWA B100 and NSF Standard 61 specifications.
Material: Silica sand (light tan)
US Sieve: 12x20 mesh
Grain shape: Round to sub-angular
Standards: AWWA B100, NSF Standard 61
Packaging: 50 lb / 0.5 cu ft bagsFiner mesh sizes available upon request

Pea Gravel
Pea gravel is used in sand filters and other filter bed applications to protect bottom lateral assemblies, prevent sand migration into distribution piping, and improve water flow and backwashing efficiency.
Material: Washed silica quartz
Gradation: #1 Well Pack (pea gravel) per ASTM D5092
Packaging: 50 lb / 0.5 cu ft bags
Applications: Sand filter bed support, lateral protection, filter drainage layer

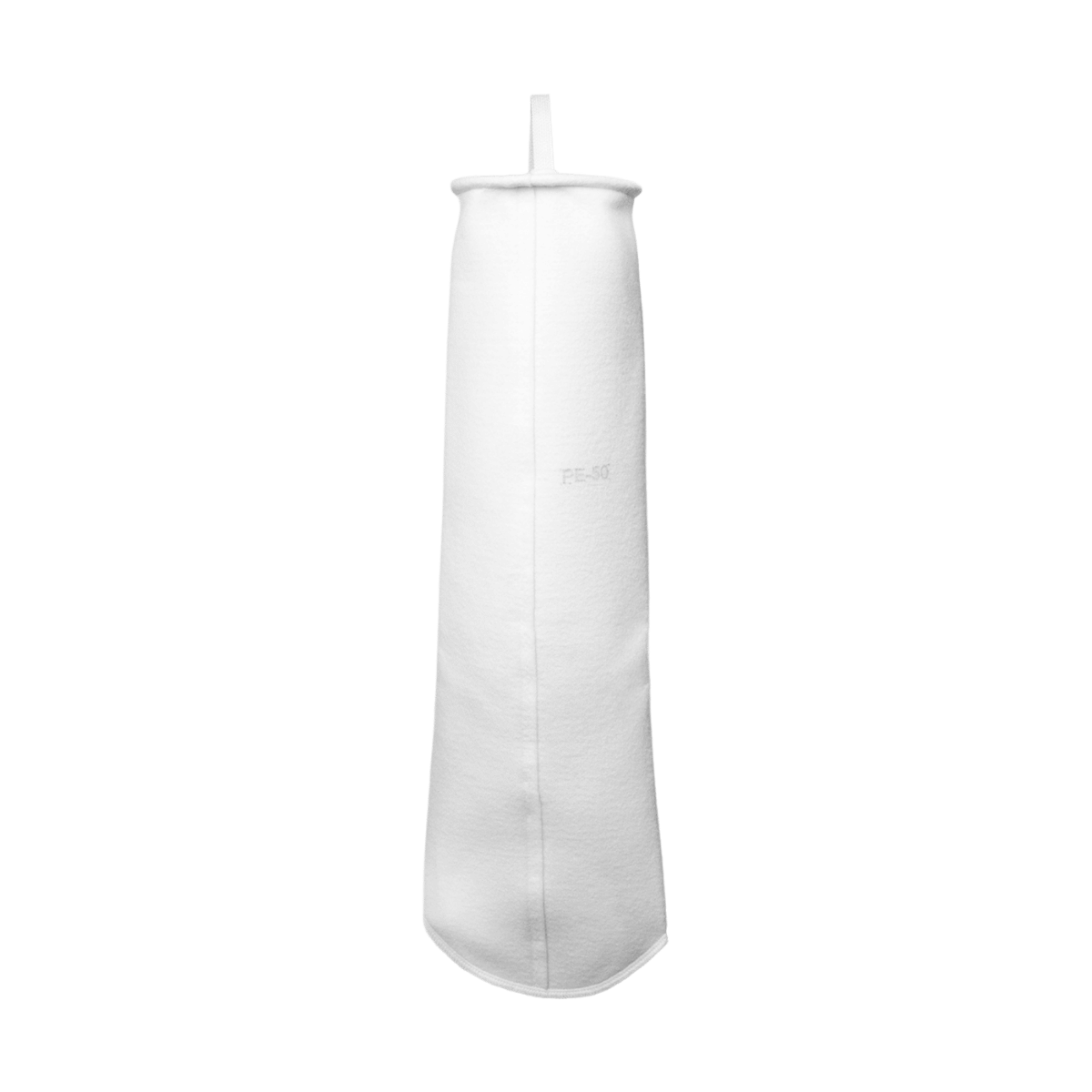

50-Micron Polyester Felt Bag Filter
A singed polyester felt depth filter bag for removal of solid and gelatinous particles from low-to-medium viscosity liquid streams, compatible with all standard trade size #2 bag housings.
Part number: PE-50
Media: Singed polyester felt
Micron rating: 50 micron (nominal - also available in 0.5, 1, 5, 10, 25, 100)
Size: Trade size #2 (7" diameter x 32" length)
Ring/flange: Polypropylene ring (steel or stainless available)
Seam: Sewn or welded
Max operating temperature: 275°F
Chemical compatibility: Broad

150-Micron Oil-Absorbing Bag Filter
A multi-layer polypropylene microfiber bag filter engineered for simultaneous particulate removal and high-capacity oil absorption, suited for water treatment applications involving free-phase hydrocarbons.
Part number: XOAM150P2SH
Media: Polypropylene microfiber with proprietary oil-retaining fibers
Micron rating: 150 micron (95% absolute efficiency), 25 micron
Size: Trade size #2
Ring/flange: Steel ring with handle
Efficiency: 95% or greater
Oil retention capacity: Up to 10.7 lbs (size #2)

300-Micron Polypropylene Monofilament Bag Filter
A woven polypropylene monofilament mesh bag filter designed for surface filtration of non-deformable particulate in liquid treatment systems, compatible with all standard trade size #2 bag housings.
Part number: POMO300P2P
Media: Polypropylene monofilament mesh
Micron rating: 300 micron (nominal)
Size: Trade size #2 (7-1/16" diameter x 32" length)
Ring/flange: Plastic flange (P-style)
Seam: Sewn
Max operating temperature: 200°F
Chemical compatibility: Broad; good acid resistance
